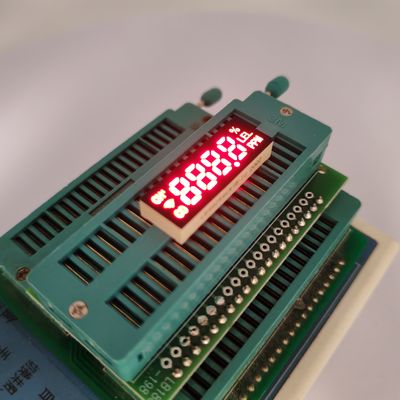

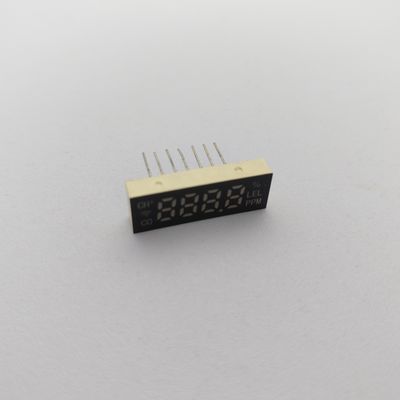

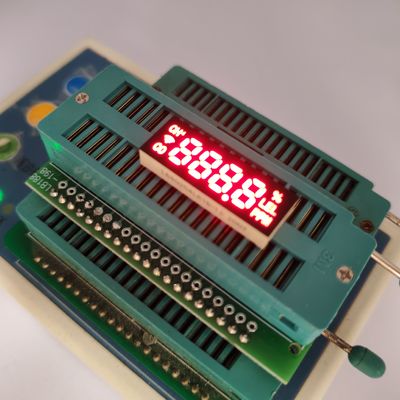

Bright Red 4-Digit LED Clock Display for Easy-Read Time on Home Appliances

자세한 정보

원래 장소:

Shenzhen, 중국

인증:

ISO9001&RoHS

방출 색상:

수퍼 브라이트 빨강

LED 삶:

200000시간

포장 크기:

28*10*5mm

공급 업체 유형:

ODM, OEM, 원 제조사

빛나는 강도:

50-60MCD/LED

포장 세부 사항:

EPE+상자

공급 능력:

50000PCS/days

제품 설명

Red 4 Digit 7 Segment LED Clock Display for Home Appliances

Product Specifications

Attribute	Value
Specification	Video Wall, Digital Poster
Emitting Color	Super bright RED
Led Life	100000 hours
Packing Size	28105mm
Supplier Type	ODM, OEM, Original manufacturer
Luminous Intensity	50-60mcd/led

Product Description

Red 4 Digit 7 Segment LED Clock Display

Character Height: 6.2 mm (0.24 inches)

Package Dimensions: 28.0 × 10.0 × 5.0 mm (L×W×H)

Display Type: Common anode

Visual Design: High-contrast white segments on black background

Emission Color: Super bright red (dominant wavelength: 620-625 nm)

Luminous Intensity: 50-60 mcd (typical)

Forward Voltage (per segment): 1.8-2.2 VDC

Operating Current (per segment): 5-10 mA

Technical Specifications

Code: Orange -F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code: Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code: Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	90		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	620		625	nm

Code: Ultra Bright Blue -BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.0	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	100		120	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		470	nm
