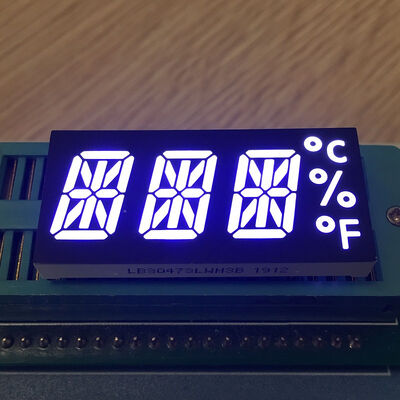

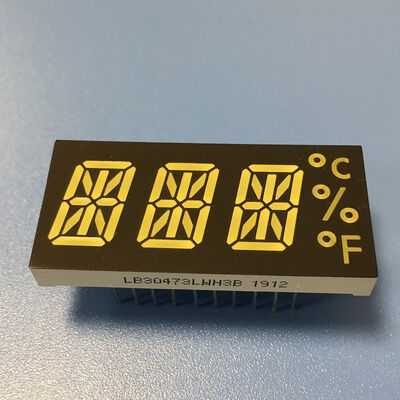

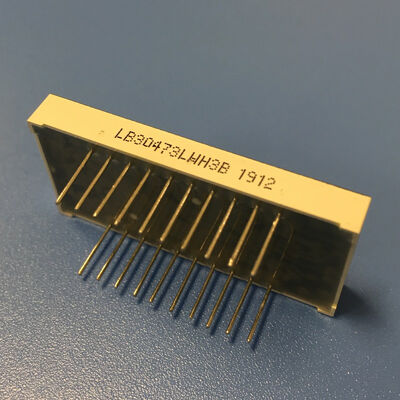

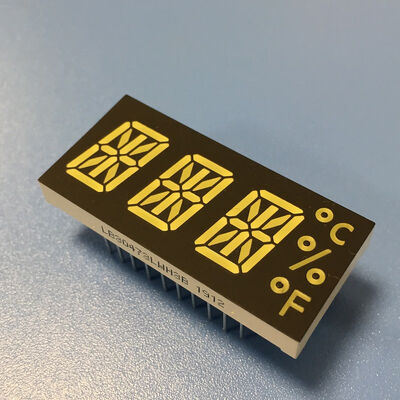

Ultra Bright White 14 Segment Alphanumeric LED Display 3 Digit for Temperature

Name: Ultra Bright White 14 Segment Alphanumeric LED Display 3 Digit for Temperature
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB30473LWH3B
Price: 0.20 USD
Availability: InStock

모델 번호:	LB30473LWH3B
MOQ:	1000
지불 조건:	T/T, Western Union, L/C, D/A, D/P.
공급 능력:	50000pcs/일

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

용법:

실내,외부,내부/외부,사무소,외부 및 실내

튜브 칩 색상:

풀 컬러, 빨간색, 녹색, 흰색, 파란색

화면 크기:

주문을 받아서 만들어진 크기, 12.7x 7.6 x 7mm, 50.4*19.0*8.1mm, 113mm*29mm, 28.8*40.8mm

디스플레이 기능:

그래픽, 애니메이션, 비디오, 숫자 0-9, 온도

픽셀:

10mm,7mm,25mm,8.0,10.20mm

색상:

파란색, 노란색, 녹색, 빨간색, 흰색

명도:

광 센서에 의한 자동 조광, 4000,7000cd/sqm, 5000~6500mcd, 고휘도

보증:

2년,1년

제품명:

핫 비디오 HD P6 7 세그먼트 LED 디스플레이 화면, Led 7 세그먼트 Led 디스플레이, Chestnuter Led 비디오 디스플레이 패널

애플리케이션:

사무용 전자 장비, 가전 제품 등, 옥외 광고용 LED, 실내 광고용

이름:

LED 가격 역 휘발유 디스플레이, 소형 7 세그먼트 3 자리 0.2 인치 7 세그먼트 smd LED 디스플레이, 4 자리 7 세그먼트 디스플레이, 10 인치 7 세그먼트 디스플레

극성:

공통 양극, 공통 음극, CC&C.A

작동 온도:

-35 ~ +85 ℃,-20 +85,-40~80 ℃,-45-80 ℃

수명:

100000 시간, 100000 시간, 50000 시간 이상

전압:

DC12V,90~120V/220~240V(고객의 요구에 따라)

색깔 방출:

파란색, 노란색, 녹색, 흰색, 빨간색

자리 높이:

0.2인치,1.5,1.2,0.38,0.5

LED 칩:

에피스타,인간,알간LP

OEM:

예

포장 세부 사항:

EPE + 상자

공급 능력:

50000pcs/일

강조하다:

3 digit alphanumeric LED display

ultra bright white LED display

14 segment temperature LED display

제품 설명

Ultra Bright White 14 Segment Alphanumeric LED Display

High-performance 3-digit alphanumeric LED display specifically designed for temperature monitoring applications with ultra bright white illumination.

Product Overview

Polarity: Common cathode
Color: Ultra Bright White
Luminous Intensity: 50-60mcd/dice
Forward Voltage: 1.8-2.2V/led
Available Colors: Red, blue, yellow green, pure green, white, amber, orange, and yellow

Key Features

High luminous intensity output with low forward voltage
Low power consumption and extremely low current
Evenly distributed luminous intensity across all segments
Industrial standard size for compatibility
Excellent reliability in bright ambient light conditions
Stable performance and long operational lifetime
RoHS/REACH compliant for environmental safety

Applications

Audio equipment and instrument panels
Home electronic appliances
Numeric displays and multimedia products
Digital indicators for temperature, humidity, and process monitoring

Technical Specifications

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Color Variant Specifications

Yellow Green (Code: J)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow (Code: Y)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange (Code: F)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red (Code: R)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red (Code: UR)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green (Code: G)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue (Code: BH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White (Code: WH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Additional color variants including Yellow Green, Amber/Yellow, Orange, Super Bright Red, Ultra Bright Red, Ultra Bright Blue, and Ultra Bright White with detailed specifications available upon request.

Product Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display - widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostat indicators, heating and cooling control systems.

Manufacturer Information

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) - Established in 2006, specializing in R&D, manufacturing and sales of optoelectronic LED displays. ISO 9001:2015 Quality Management Systems certified with over 15 years of OEM and ODM experience.

Certifications

Office and Factory Overview

Company Exhibitions

Shipping Services

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

We are an original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What are your main products?

Our main products include 7 Segment LED displays, SMD LED Displays, Dot Matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through Hole LEDs, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

Our MOQ is 1000 pieces. We also accept sample orders and small quantities below our MOQ.

Q4: Can I get samples for testing before placing an order?

Yes. We provide 5-10 free samples for testing, with freight costs borne by the customer.

Q5: How long is your delivery time?

Delivery time is approximately 10-20 days, depending on order quantity and raw materials. For urgent orders with available materials, we can complete within 7-10 days.

Q6: What are your payment terms?

We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.

Q7: Can you provide FOB prices?

Yes. We quote prices based on INCOTERMS including EXW, FOB, CIF, and DDP.

Q8: How can I get your catalog and price list?

Please provide your email address or contact us directly through our website.

Q9: Can I negotiate prices?

Yes, we offer discounts for bulk orders.

Q10: How much are shipping charges?

Shipping costs depend on shipment size and method. We provide quotes upon request.

Q11: Do you offer custom design services?

Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.

Q12: Will you keep my custom design confidential?

Yes, we will not share or sell your design to others without authorization.

Q13: What is the lead time for customized product samples?

Sample lead time is approximately 20-25 working days after receiving mold cost and design approval.

Q14: What shipping methods do you use?

We ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.

Q15: How do you ensure product quality?

As ISO 9001 certified manufacturers with over 20 years of experience, we conduct 100% testing of all products twice before shipment.
