| 브랜드 이름: | LIGHT-BO |
| 모델 번호: | LB5418IYJ1S |
| MOQ: | 1000 |
| 가격: | Negotiate |
| 지불 조건: | 사전에 TT |
| 공급 능력: | 50000PCS/days |

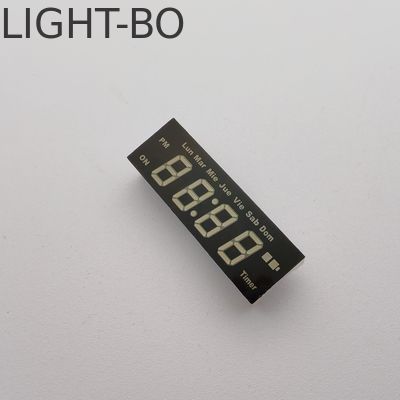

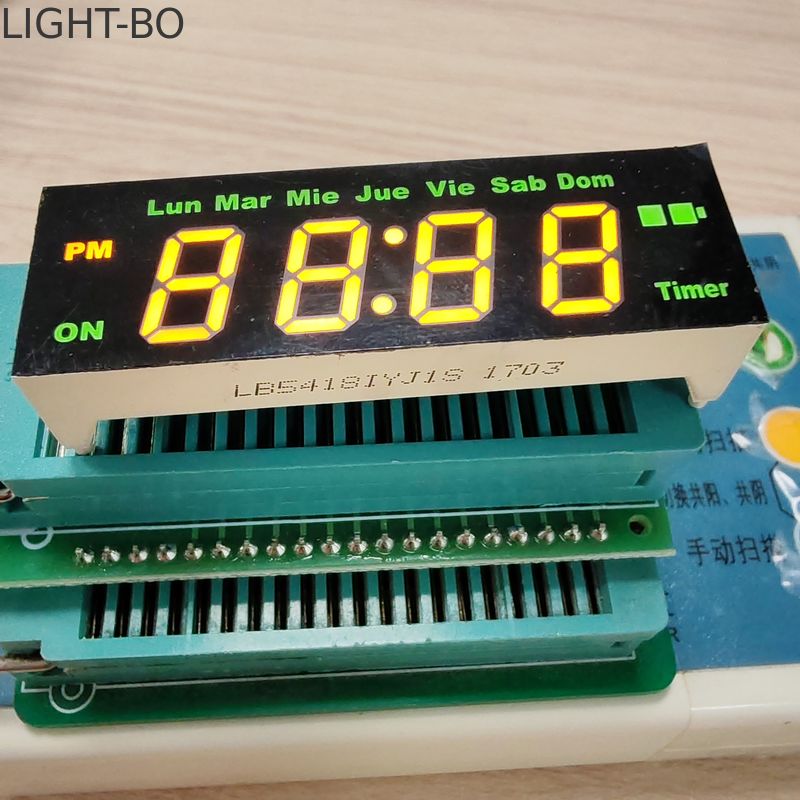

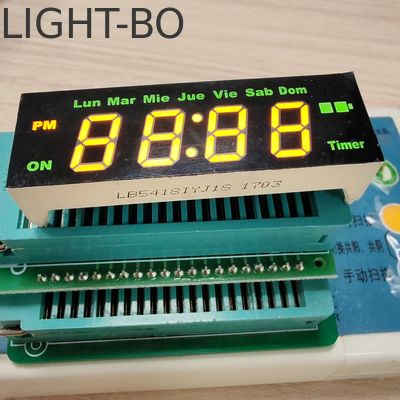

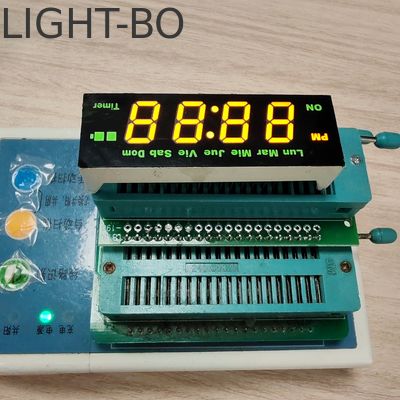

Yellow/Green 4 Digit 7 Segment LED Display for timer control
Physical Dimensions:
Package Size: 54.34×17.6×11.5mm (precision engineered)
Character Height: 10.16mm (optimal visibility)
Face Color: Matte black (enhanced contrast)
Electrical Characteristics:
Polarity: Common anode
Forward Voltage: 2.8-3.2V (low power operation)
Luminous Intensity: 100-120mcd/LED (high brightness)
Optical Performance:
Primary Color: Yellow/Green
Available Emitting Colors:
• Red/Blue/Yellow Green
• Pure Green/White/Amber
• Orange/Yellow (full spectrum options)
Chromaticity Coordinates: X=0.29-0.31, Y=0.29-0.31
Key Features:
Wide viewing angle
Consistent light distribution
RoHS compliant materials
Industrial-grade durability
Product Features & Advantages:
Superior Optical Performance
High-efficiency design delivers bright, uniform illumination
Perfectly balanced luminous distribution across all segments
Maintains excellent visibility even in bright ambient light conditions
Energy Efficient Operation
Optimized forward voltage for maximum luminous intensity
Ultra-low power consumption design
Extremely low operating current requirements
Robust Construction & Reliability
Industrial-standard sizing for universal compatibility
Engineered for stable, consistent performance
Extended operational lifespan exceeding industry standards
Compliance & Safety
Fully compliant with RoHS/REACH environmental directives
Manufactured using premium, durable materials
Rigorous quality testing ensures dependable operation
Color:Pure Green
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=20mA | 2.5 | 3.0 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=20mA | 120 | 160 | mcd | |
| Spectrum With Of Half Value | λ | If=20mA | 20 | nm | ||
| Wavelength | Dλ | If=20mA | 515 | 525 | nm |
Code:Yellow Green- J/JU
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 30 | 40 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 569 | 573 | nm |
Code:Amber/Yellow -Y
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 50 | 60 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 585 | 595 | nm |
Code:Orange -F
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 50 | 60 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 600 | 605 | nm |
Code:Super Bright Red -R
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 50 | 60 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 630 | 635 | nm |
Code:Ultra Bright Red -UR
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 90 | 100 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 620 | 625 | nm |
Code:Ultra Bright Blue -BH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.6 | 3.0 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 100 | 120 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 460 | 470 | nm |
