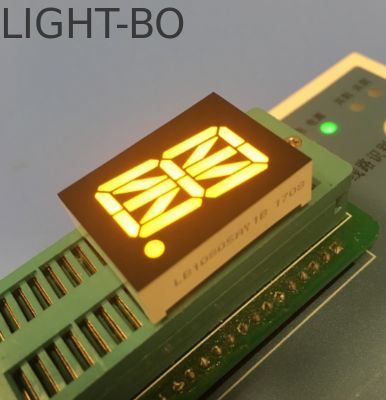

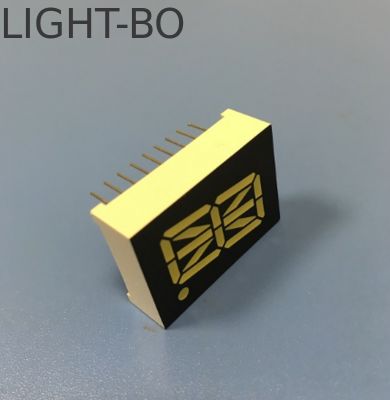

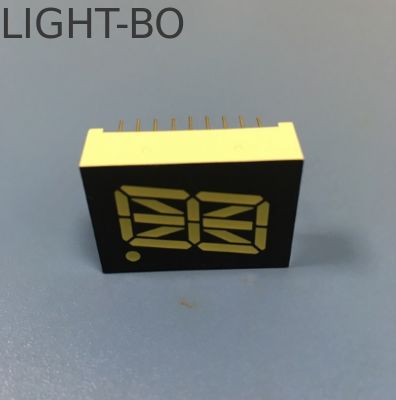

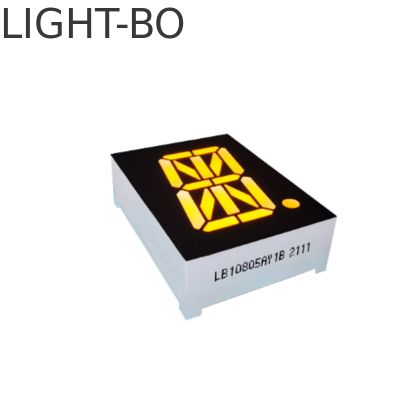

0.8inch 16 Segment Alphanumeric LED Display Yellow Single Digit Common Anode For Elevator Indicator

브랜드 이름:	LIGHT-BO
모델 번호:	lb10805ay1b
MOQ:	1000
가격:	Negotiate
지불 조건:	전신환, 웨스턴 유니온,
공급 능력:	20000 PC / 일

자세한 정보

제품 설명

자세한 정보

원래 장소:

첸젠, 중국

인증:

ISO9001&RoHS

포장:

EPE+CARTON

극성:

공통 양극

디지트 높이:

00.8인치

작동 온도:

-45-80-

외부 크기:

27.7 x 20 x 8.5 mm

포장 세부 사항:

EPE+CARTON

공급 능력:

20000 PC / 일

강조하다:

Common Anode 0.8inch Alphanumeric LED Display

Single Digit 0.8inch Alphanumeric LED Display

Elevator Indicator 0.8inch Alphanumeric LED Display

제품 설명

0.8inch 16 Segment Alphanumeric LED Display Yellow Single Digit Common Anode For Elevator Indicator

Min. Order: 1000 Piece/Pieces

Trade Term: FOB,EXW

Payment Terms: T/T, WU

Place of Origin: Guangdong, China (Mainland)

Means of Transport: Ocean, Air, Land

Production Capacity: 50,000 pcs /day

Packing: EPE+CARTON

Delivery Date: 10-15 days

Type: Character

Brand Name: LIGHT-BO

Polarity: Common Anode

Life Span: 100000 hours

Emitting Color: Yellow

Certification: ISO9001&RoHS

Digit Height: 0.8 Inch

Application: Elevator Indicator

Operating Temperature: -45-80℃

Outer Dimensions: 27.7 X 20 X 8.5 mm

Digit: 1

Oem: Yes

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Code:Yellow Green- J

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Code:Amber/Yellow -Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Code:Orange -F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code:Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code:Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	80		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Code:Pure Green -G

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		180	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Code:Ultra Bright Blue -BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Code:Ultra Bright White -WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
LED color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm
