| 브랜드 이름: | LIGHT-BO |
| 모델 번호: | LB3510IWH1S |
| MOQ: | 1000 |
| 가격: | Negotiate |
| 지불 조건: | TT in advance |
| 공급 능력: | 50000pcs/days |

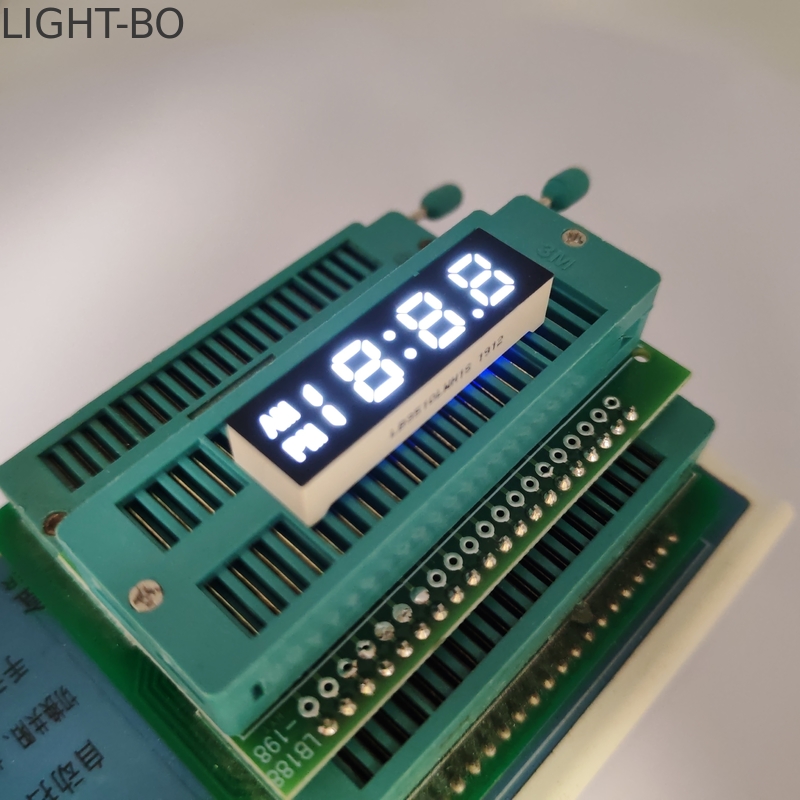

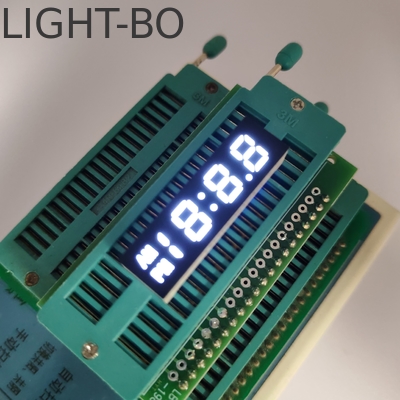

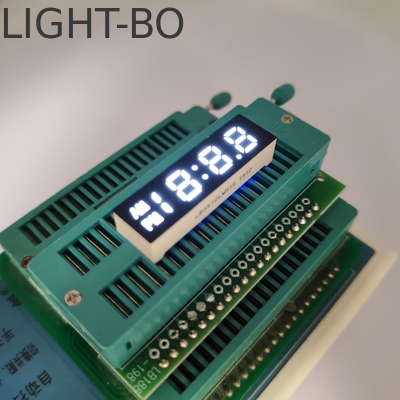

Ultra Bright white 3 Digit 7 Segment LED Display for Timer Control
Product descriptions
| Descriptions | 3-Digit 7 Segment LED Display |
| Dimensions | 35*10*7.2mm |
| Digit height | 6.5mm |
| Polarity | Common anode |

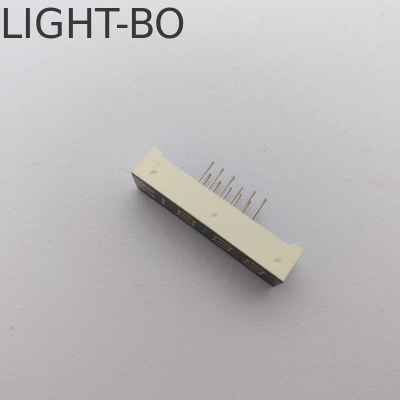

| Pin type | SMD |
| Emitting Color | Ultra bright white |
| Application | Timer Control |
| Working Environment Temperature | +105ºC ~+120ºC |
| LED Colors | Available in Red,blue,green,white,amber,orange |
Code:Ultra Bright White -WH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.6 | 3.0 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| LED color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
| Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 | 0.30,0.33 | nm |
Color:Pure Green
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=20mA | 2.5 | 3.0 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=20mA | 120 | 160 | mcd | |
| Spectrum With Of Half Value | λ | If=20mA | 20 | nm | ||
| Wavelength | Dλ | If=20mA | 515 | 525 | nm |
Code:Yellow Green- J/JU
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 30 | 40 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 569 | 573 | nm |

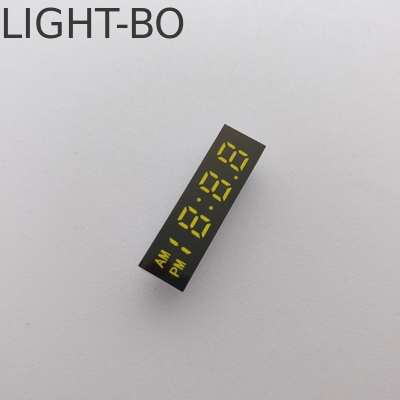

Code:Amber/Yellow -Y
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 50 | 60 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 585 | 595 | nm |
Product Features
High-Contrast Design - White segments on black background for optimal readability
Superior Brightness - High luminous intensity ensures clear visibility in all lighting conditions
Energy Efficient - Low current consumption reduces power requirements
Dependable Performance - Stable operation across temperature ranges and environmental conditions
Uniform Illumination - Consistent light distribution across all segments
Easy Integration - PCB-mountable package simplifies assembly and reduces production costs
Driver Compatibility - Direct interface with common ICs for simplified circuit design
Eco-Friendly - RoHS compliant construction meets global environmental standards
Our company offers a comprehensive range of LED display solutions, including LED segment displays, dot-matrix LED displays, LED display modules, and classic 7-segment LED displays.
Applications of Segment LED Displays
Audio & Instrumentation
Premium visibility for control panels and measurement readouts in professional audio equipment and testing instruments
Digital Measurement Systems
Ideal for precision indicators in counters, timers, and industrial measurement devices
Consumer Electronics
High-performance integration in multimedia displays, AV systems, and smart home devices
Financial Information Systems
Real-time digital signage for currency exchange rates, stock market data, and banking displays
Public Time Displays
High-visibility solutions for digital clocks, timers, and scheduling systems in commercial and industrial environments
Retail Fuel Displays
Weatherproof LED solutions for gas station price signs and outdoor digital signage
Industrial Equipment
Durable display solutions for automation systems, medical devices, and machinery control panels
