Ultra White Single Digit 38mm 7 Segment LED Display Common Anode for Digital Clock Indicator

Name: Ultra White Single Digit 38mm 7 Segment LED Display Common Anode for Digital Clock Indicator
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB11501AWH1B-H8-D
Price: 0.20 USD
Availability: InStock

브랜드 이름:	LIGHT-BO
모델 번호:	LB11501AWH1B-H8-D
MOQ:	1000
가격:	Negotiate
지불 조건:	T/T, 서부 동맹,
공급 능력:	200000 PCS/DAY

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국 심천

인증:

ISO9001&RoHS

브랜드 이름:

Light-Bo

Type:

Standard

Digit Count:

Single-digit (1 digit)

Digit Height:

38.10mm (1.5-inch)

Outer Dimensions:

30.6 x 44.0 x 8mm

Polarity:

Common Anode

포장 세부 사항:

EPE+상자

공급 능력:

200000 PCS/DAY

강조하다:

38mm 7 segment LED display

common anode LED display

single digit LED clock indicator

제품 설명

Ultra White Single Digit 38mm 7 Segment LED Display

Common Anode for Digital Clock Indicator

Product Overview

This single-digit 7-segment LED display is engineered for digital clock indicators and general numeric readout applications. It features a 38mm outline dimension, 0.67-inch (17mm) digit height, and ultra-bright white illumination, delivering high visibility and stable performance. With a common anode design, it integrates seamlessly with standard driver circuits, while its low-power, high-efficiency structure ensures long-term reliable operation.

Key Specifications

Parameter	Specification
Display Type	Single Digit 7-Segment LED Display
Outer Dimensions	44 × 19 × 9 mm
Digit Height	0.67 inch (17 mm)
Polarity	Common Anode
Standard Emitting Color	Ultra White
Optional Colors	Red, Yellow-Green, Amber; multiple other colors available
Luminous Intensity	High-luminous intensity output
Power Consumption	Low power consumption, extremely low current
Segment Uniformity	Luminous evenly distributed on each segment
Compliance	RoHS compliant (standard)

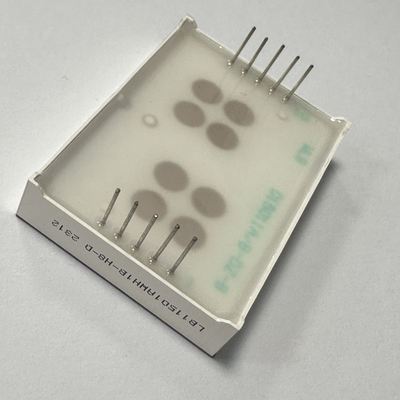

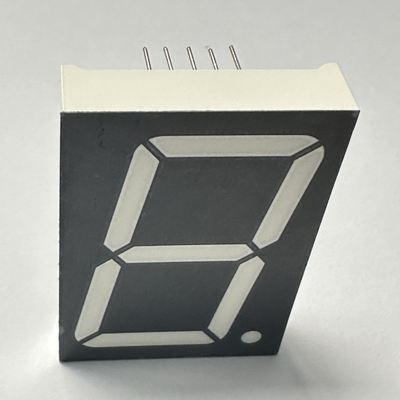

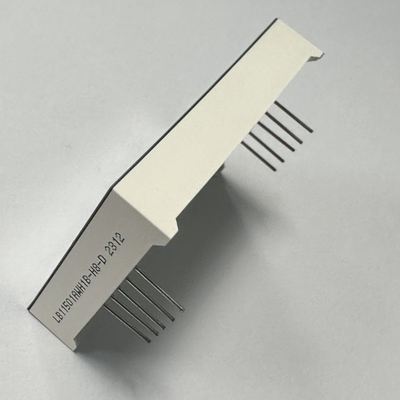

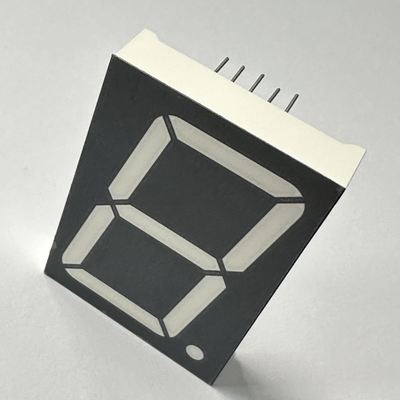

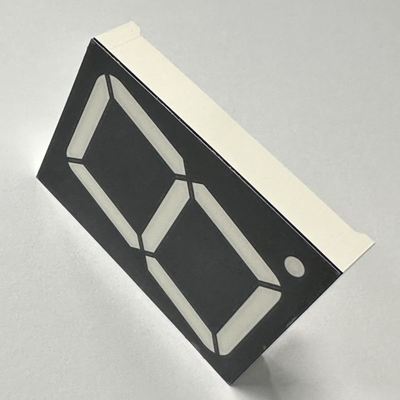

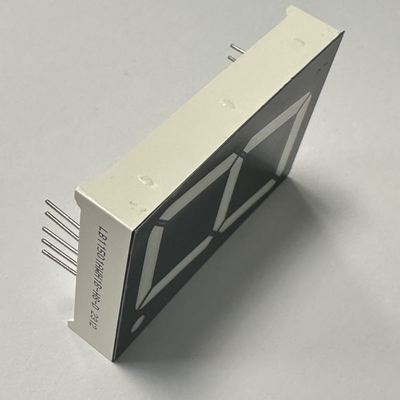

Product Images

Core Features & Advantages

Ultra-bright White Illumination: Clear, high-visibility numeric display ideal for digital clock indicators.
High Luminous Intensity & Uniformity: Even light distribution across segments for sharp, consistent readouts.
High Efficiency & Low Power: Extremely low current draw, suitable for battery-powered and energy-saving devices.
Stable & Durable: Long operational lifetime with stable performance under continuous use.
Flexible Color Options: Besides ultra white, red, yellow-green, amber and other custom colors are available.
Easy Integration: Common anode polarity, compatible with mainstream driver ICs and PCB mounting.

Applications

Digital clock indicators
Instrument panels & numeric readouts
Timers, counters & control panels
Consumer electronics & home appliances
Industrial status displays

Why Choose This Display?

Optimized for digital clock applications with high-visibility ultra-white output. Balanced performance: high brightness, low power, and long lifetime. Flexible color customization to match different product designs. Fast lead times for small-to-medium orders, supporting rapid project deployment.

Technical Specifications

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Electrical Characteristics by Color Code

Yellow Green - J

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange - F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red - R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red - UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green - G

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue - BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White - WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Manufacturer Information

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO)

Established in 2006, a company that integrates R&D, manufacturing and sales of optoelectronics LED Displays. ISO 9001:2015 Quality Management Systems certified company. With more than 15 years OEM and ODM experience.

LIGHTBO has been committed to provide high quality and low cost customized solutions to help customers reduce cost and enhance competitiveness.

Products Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances, temperature indicators, humidity indicators, refrigerator controller, thermostats indicator, heating and cooling control and so on.

Certifications

Office and Factory Overview

Company Exhibitions

Shipping Services

Frequently Asked Questions

Q1: Are you trading company or manufacturer?

A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What is your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole led, SMD LEDs, LED Backlights, and so on.

Q3: What is your MOQ?

A: Our MOQ is 1000 pcs. We can also accept sample orders and small orders with quantity less than our MOQ.

Q4: Before placing order, Can I get some samples for test?

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time: About 10-20 days; According to order quantity and raw materials. If you have urgent order, and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days.

Q6: What is your terms of payment?

A: We accept bank transfer, T/T, Western Union and Paypal with small amount. Details of payment methods can be negotiable.

Q7: Can you quote me FOB prices?

A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF, DDP.

Q8: How can I get your catalogue and price list?

A: Yes. Please let us know your email address or contact us from website directly for our catalogue and price list.

Q9: Can I negotiate the prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.

Q11: Can you do custom design products?

A: Yes, OEM & ODM service are available. We can customize the sizes, LED color and functional icons according to your requirements.

Q12: If I send my design, can you make it for myself only, and will not show it to any one else?

A: Yes, we will not show it or sell to others without your authorization.

Q13: What will be the samples lead time for customized products?

A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers.

Q14: What is the shipping methods?

A: We usually ship the goods by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA etc, also you can choose the other way that best for you.

Q15: How do you ensure the quality of your products?

A: We are ISO 9001 QMS certified manufacturers with more than 20 years experience. We conduct twice 100% percent test for all of our products before shipment.
