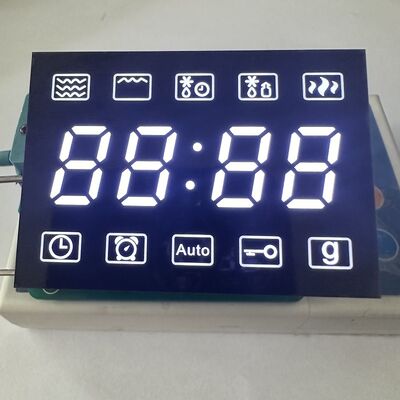

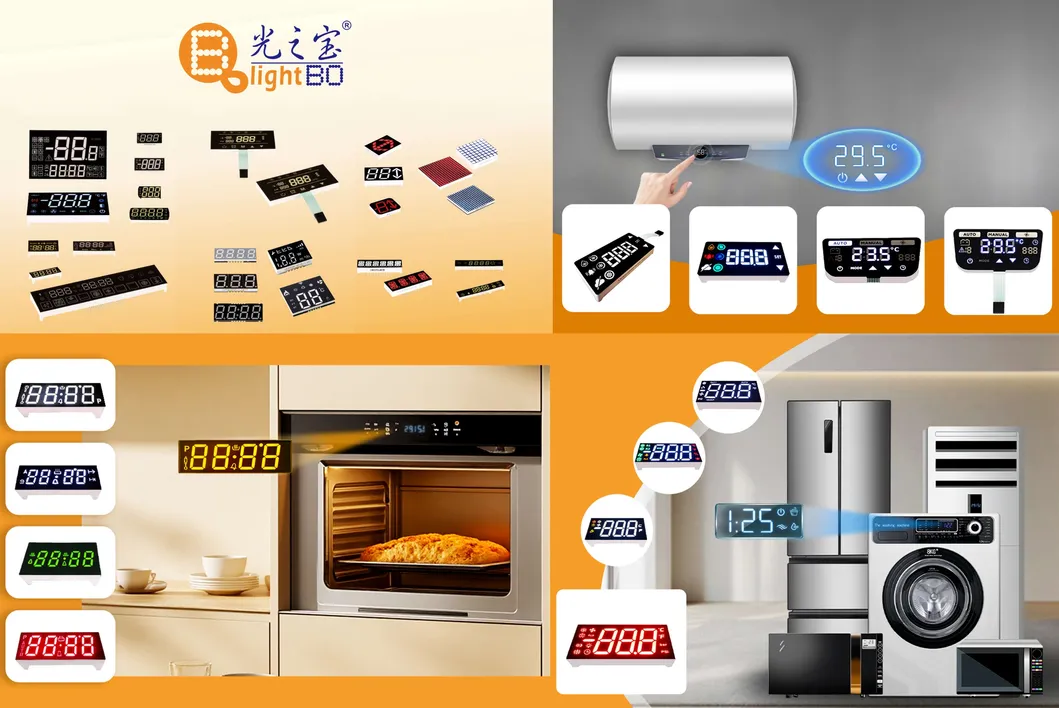

Customized Ultra Bright White 4-Digit 7-Segment Common Cathode LED Display for Microwave Oven Timers
Introducing the Customized Ultra Bright White 4-Digit 7-Segment Common Cathode LED Display—a microwave-optimized solution engineered for oven timers, cooking control panels, and high-temperature home appliances. Designed to prioritize extreme heat resistance, clear timer readouts, and kitchen durability, this 4-digit display excels at showing microwave-specific metrics: cooking time, power level, defrost time, or error codes.
Its 0.49-inch character height ensures readability from 0.5–1.5 meters (typical kitchen counter distance), while the 61×43×20mm robust profile fits standard microwave control panels—no forced redesigns required. The ultra bright white light cuts through microwave cavity glare and kitchen ambient light, and the extreme operating temperature range (max. 105–120°C) ensures performance even near microwave heating elements.
With common cathode polarity, low power consumption, and RoHS/REACH compliance, this display thrives in the high-heat, high-humidity microwave environment—ideal for 24/7 use in daily cooking scenarios.
Key Features (Microwave Oven Timer-Optimized)
1. Extreme High-Temperature Resistance
Max Operating Temp (105–120°C): Engineered to withstand the intense heat generated by microwave ovens (e.g., near heating chambers, during prolonged high-power cooking). No segment dimming, flickering, or failure—critical for maintaining visible timer readouts during 30+ minute cooking sessions.
Heat-Resistant Materials: Black face and LED components use high-temperature epoxy and flame-retardant materials, avoiding deformation or discoloration even in direct proximity to microwave heat sources. Resists thermal shock (rapid temperature changes from cold standby to hot cooking mode) without performance degradation.
2. Ultra Bright White Visibility for Timer Readouts
High-Luminous Intensity: Ultra bright white light ensures timer digits and symbols (colon for time separation) are crisp and distinguishable—even through microwave door glass or kitchen glare (e.g., sunlight, overhead lights). Prevents misreading “01:30” as “00:13” (a common cooking error) and ensures quick recognition of timer countdowns.
Big Viewing Angle: Uniform light distribution across all segments enables readability from off-center positions (e.g., stirring a pot while glancing at the microwave)—no need to lean in to check remaining time, enhancing cooking safety and convenience.
Black Face Contrast: Black face background amplifies the brightness of white segments, eliminating “washout” and ensuring clarity in all kitchen lighting conditions (e.g., dim morning kitchens, bright afternoon sun).
3. Durable & Kitchen-Resilient Performance
Low Power Consumption: Minimal current draw reduces electricity use for microwaves (which run on frequent short cycles) and aligns with energy-saving home trends—cuts long-term utility costs without compromising brightness.
Stable Performance & Good Consistency: All segments emit uniform brightness (no “hot spots” or dim edges), ensuring consistent readability of timer values and power levels. Withstands humidity, steam, and minor vibrations (e.g., closing microwave doors, kitchen traffic) without flickering or segment failure.
Long Lifetime (50,000+ Hours): High-quality white LED chips and heat-resistant components match the 8–10 year service life of most microwaves—eliminates frequent display replacements, reducing maintenance hassle for users.
4. Easy Integration & Compliance
Common Cathode Polarity: Works with standard microwave driver ICs—simplifies circuit design for manufacturers and integrates seamlessly with microwave firmware.
Through-Hole (PTH/DIP) Pin Type: Easy to assemble on microwave PCBs via manual or automated soldering—ensures secure, vibration-resistant connections (critical for microwaves with high-frequency operation). Compatible with legacy and modern microwave control boards, reducing redesign costs.
Dual Compliance (RoHS/REACH): Free from lead, mercury, and harmful substances—safe for food-related kitchen use (no toxic emissions when exposed to heat/steam) and export to global markets (EU, North America, Asia), meeting strict consumer appliance safety standards.
Multi-Color Versatility: Beyond ultra bright white, available in red (alert values, e.g., “ERR”), blue (modern aesthetics), green (eco-mode), amber, and orange—flexible for brand-specific designs or functional differentiatio.
5. Timer-Specific Functionality
4-Digit Capacity with Colon: Supports timer ranges from “00:00” (1 minute) to “99:59” (1 hour 39 minutes)—covers all standard microwave cooking times. Colon symbol maintains steady illumination for clear time separation (e.g., “02:30” = 2 minutes 30 seconds).
IC Compatibility with Timer Modules: Seamlessly pairs with microwave timer chips (e.g., NE555, CD4060) and microcontrollers (e.g., PIC16F877A)—enables precise countdown control, pause/resume functionality, and automatic shutoff displays without additional adapters.
Technical Specifications
| Category | Parameter | Specification (Microwave Timer-Optimized) |
|---|---|---|
| Basic Design | Display Type | 4-Digit 7-Segment LED Display (supports colon for time separation) |
| Polarity | Common Cathode | |
| Character Height | 0.49 inch (customizable per request) | |
| Package Dimensions (L×W×H) | 61 × 43 × 20mm | |
| Face Colour | Black | |
| Pin Type | Through-Hole (PTH/DIP) | |
| Optical Performance | Emitting Color | Primary: Ultra Bright White; Optional: Red/Blue/Green/Amber/Orange |
| Key Optical Traits | High luminous intensity, big viewing angle, uniform brightness | |
| Environmental Resistance | Operating Temperature | Max. 105–120°C (heat-resistant for microwave use) |
| Electrical Parameters | Power Consumption | Low |
| Quality & Compliance | Core Advantages | Heat-resistant, stable performance, easy assembly, long lifetime |
| Compliance | RoHS Compliant, REACH Compliant |
Absolute Maximum Ratings(Ta=25ºC)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature(≤3 seconds) | Th | 260 | ºC |
Code:Yellow Green- J
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 30 | 40 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 569 | 574 | nm |
Code:Amber/Yellow -Y
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.5 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 585 | 595 | nm |
Code:Orange -F
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 600 | 605 | nm |
Code:Super Bright Red -R
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 50 | 60 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 630 | 635 | nm |
Code:Ultra Bright Red -UR
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 80 | 100 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 625 | 635 | nm |
Code:Pure Green -G
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.6 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 180 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 515 | 525 | nm |
Code:Ultra Bright Blue -BH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 460 | 465 | nm |
Code:Ultra Bright White -WH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| LED color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
|
Chromaticity Coordinates
|
X/Y | If=10mA | 0.29,0.32 | 0.30,0.33 | nm |
