| 브랜드 이름: | LIGHT-BO |
| 모델 번호: | LB20281IBH1B |
| MOQ: | 1000 |
| 가격: | Negotiate |
| 지불 조건: | T/T, 서부 동맹 |
| 공급 능력: | 20000pcs/일 |

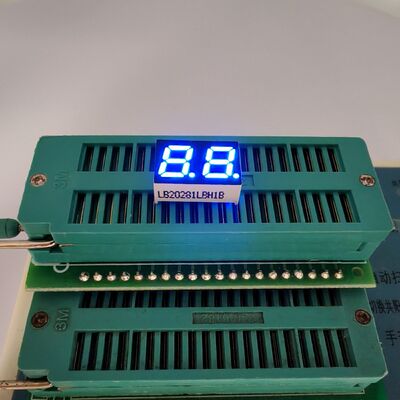

| Part Number | LB20281IBH1B | Custom part numbers available |
| Digit Number | 2 digit | 2-6 digits available |
| Digit Height | 0.28 inch | 0.25-5.0 inch options |
| Color | Blue | White, red, pure green, yellow-green, orange, etc. |
| Size | 15×10×6mm | Custom sizes supported |
| Polarity | Common Anode | Common Cathode available |
| Life Span | 80,000 hours | |
| Free Samples | Supported |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity | Iv | If=10mA | 30 | 40 | mcd |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 1.8 | 2.5 | V | |
| Luminous Intensity | Iv | If=10mA | 60 | 80 | mcd |
| Parameter | Symbol | Ratings | Unit |
|---|---|---|---|
| Forward Current (per dice) | Ipm | 20 | mA |
| Reverse Voltage (per dice) | Vr | 5 | V |
| Operating Temperature Range | Topr | -40~+85 | ºC |
