| 브랜드 이름: | LIGHT-BO |
| 모델 번호: | LBB24ARG1B-D |
| MOQ: | 1000 |
| 가격: | Negotiate |
| 지불 조건: | T/T, 서부 동맹 |
| 공급 능력: | 200000 PCS/DAY |

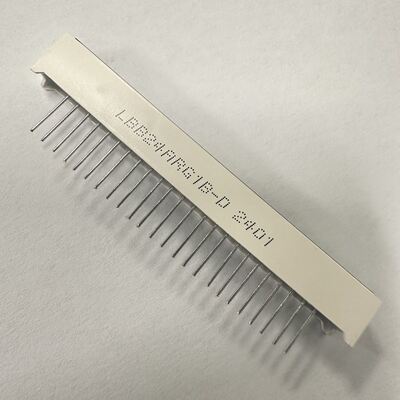

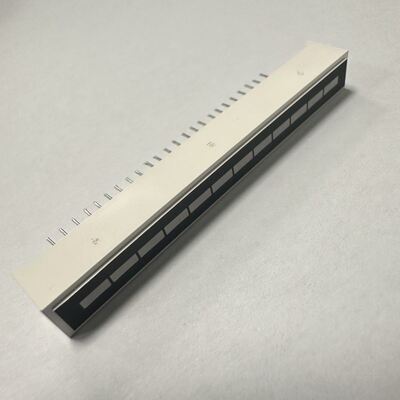

Light-Bo's 12-segment LED light bar delivers clear, dynamic indication for instrument panels and home appliances. Featuring a slim 58×7×8mm design and dual-color options (red/pure green), this component offers high luminous intensity (80-160mcd) and stable performance for reliable visual signaling. Configured with white segments on a black surface, it balances low power consumption (1.8-3.2V/LED) with long lifespan, making it ideal for continuous operation applications. RoHS compliant and easy to assemble, with customization available in additional colors including blue, amber, and white.
| Specification | Red | Pure Green |
|---|---|---|
| Brand Name | Light-Bo | Light-Bo |
| Type | 12-segment LED light bar | 12-segment LED light bar |
| Outer Dimensions | 58×7×8mm | 58×7×8mm |
| Emitting Color | Red | Pure Green |
| Wavelength | 630-635nm | 515-525nm |
| Luminous Intensity | 80-100mcd | 120-160mcd |
| Forward Voltage | 1.8-2.3V/LED | 2.8-3.2V/LED |
| Forward Current | 5-10mA/LED | 5-10mA/LED |
| Surface Design | White segments on black surface | White segments on black surface |
| Compliance | RoHS Compliant | RoHS Compliant |

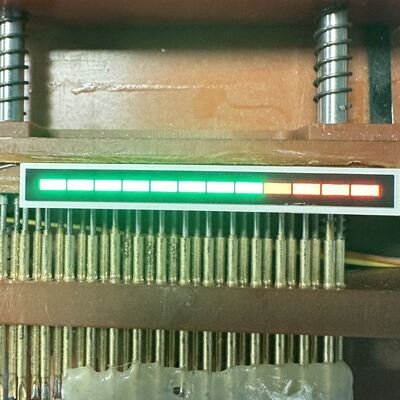

Ideal for instrument panels (status indicators, level meters), home appliances (progress displays, functional alerts), industrial control systems (operational status monitors), and devices requiring dynamic 12-segment visual feedback.
| Parameter | Symbol | Ratings | Unit |
|---|---|---|---|
| Forward Current (per dice) | Ipm | 20 | mA |
| Reverse Voltage (per dice) | Vr | 5 | V |
| Power Dissipation (per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature (≤3 seconds) | Th | 260 | ºC |
SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO)
Established in 2006, we are an ISO 9001:2015 certified manufacturer specializing in optoelectronic LED displays. With over 15 years of OEM and ODM experience, LIGHT-BO provides high-quality, cost-effective customized solutions to enhance customer competitiveness.
A: We are an original manufacturer with more than 20 years of experience in optoelectronic LED displays.
A: Our main products include 7 Segment LED displays, SMD LED displays, dot matrix LED displays, arrow LED displays, custom design LED displays, LED light bars, through hole LEDs, SMD LEDs, and LED backlights.
A: Our MOQ is 1000 pieces, but we also accept sample orders and small quantities below our MOQ.
A: Yes, we can provide 5-10 free samples for testing, with freight costs borne by the customer.
A: Delivery time is typically 10-20 days, depending on order quantity and raw material availability. Urgent orders with available materials can be completed in 7-10 days.
