온도 조절 LED 디스플레이
Created with Pixso.

High brightness Red/yellow/green Customized Three Digits 7 Segment LED Display for refrigerator control

High brightness Red/yellow/green Customized Three Digits 7 Segment LED Display for refrigerator control

브랜드 이름: LIGHT-BO
모델 번호: LB5522LRYG1S
MOQ: 1000
가격: Negotiate
지불 조건: T/T, Western Union,
공급 능력: 20000 PCS/Day
자세한 정보
Place of Origin:
Shenzhen, China
인증:
ISO9001&RoHS
Packing:
EPE+Carton
Type:
COB
Character height:
18.95mm (0.75inch)
Package dimensions:
55*22.5*7 mm
Polarity:
Common cathode
Packaging Details:
EPE+CARTON
Supply Ability:
20000 PCS/Day
제품 설명

High brightness Red/yellow/green Customized Three Digits 7 Segment LED Display for refrigerator control



Product Overview

LIGHT-BO’s COB-type customized triple-digit 7-segment LED display is engineered to deliver exceptional visibility and reliability for home appliances and climate control systems. With a 0.75-inch (18.95mm) character height and compact dimensions (55×22.5×7mm), it features crisp white segments on a black surface (protected by a durable film) and supports vibrant multi-color emission—including red, yellow, pure green, blue, white, amber, and orange. Designed with a common cathode configuration, this display balances high luminous intensity (70-140mcd) with low power consumption, making it ideal for air conditioner controls, refrigerator indicators, and heating/cooling systems.

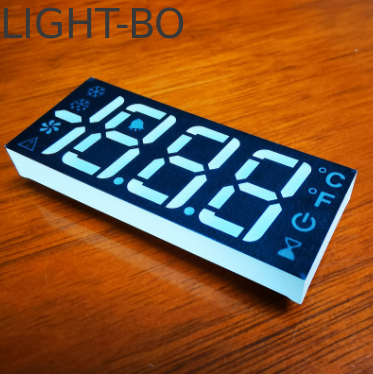

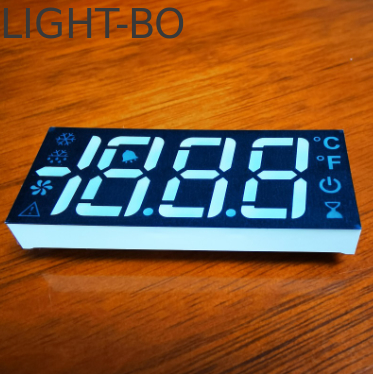

Main Product Image

High brightness Red/yellow/green Customized Three Digits 7 Segment LED Display for refrigerator control 0
High brightness Red/yellow/green Customized Three Digits 7 Segment LED Display for refrigerator control 1

Key Features

Vibrant Multi-Color Options: Emitting colors include red (625-635nm), yellow (585-590nm), pure green (515-525nm), plus blue, white, amber, and orange—perfect for color-coded controls (e.g., heating vs. cooling).

Large, Clear Digits: 0.75-inch (18.95mm) character height ensures easy readability, enhanced by high luminous intensity (70-140mcd) and uniform segment illumination.

Durable Design: White segments on a black surface with a protective film for scratch resistance, paired with stable performance and a long lifespan.

Energy Efficient: Low forward voltage (1.8-3.3V/LED) and current (5-10mA/LED) minimize power usage, ideal for energy-conscious appliances.

Easy Integration: Common cathode configuration, IC compatibility, and simple assembly streamline installation into air conditioners, refrigerators, and control panels.

RoHS Compliant: Meets global environmental standards, ensuring safety for home and commercial use.

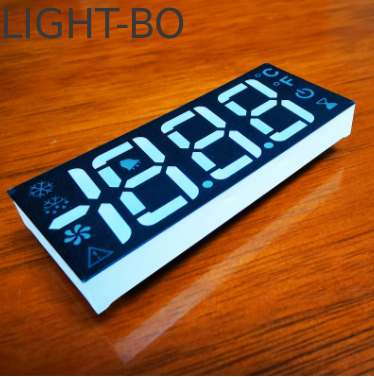

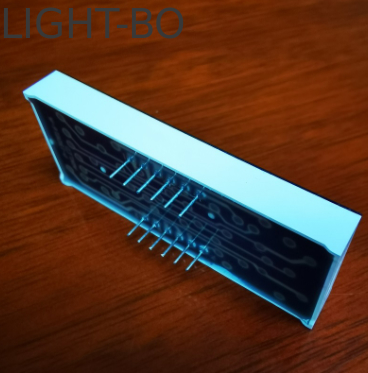

Detail Image

High brightness Red/yellow/green Customized Three Digits 7 Segment LED Display for refrigerator control 2

High brightness Red/yellow/green Customized Three Digits 7 Segment LED Display for refrigerator control 3

Technical Specifications

Specification Details
Brand Name LIGHT-BO
Type COB
Digit Count Triple-digit (3 digits)
Character Height 18.95mm (0.75 inch)
Package Dimensions 55×22.5×7mm
Polarity Common cathode
Emitting Colors Red (625-635nm), yellow (585-590nm), pure green (515-525nm), plus blue, white, amber, orange
Luminous Intensity Red: 70-90mcd; Yellow: 80-90mcd; Pure green: 120-140mcd
Forward Voltage Red/yellow: 1.8-2.3V; Pure green: 2.8-3.3V
Forward Current 5-10mA/LED
Surface Design White segments on black surface (with film)
Compliance RoHS

Dimensional Diagram

![Dimensional Diagram](Insert image here: A labeled diagram showing the outer dimensions (55×22.5×7mm) and character height (18.95mm). Place after specifications for clear visual reference.)



Applications

Ideal for:

Home electronic appliances

Air conditioner controls

Refrigerator indicators and controls

Cooling/heating systems​

Climate control panels

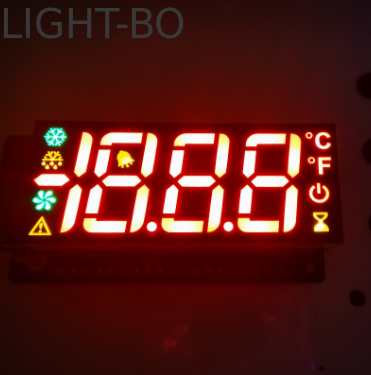

Application Scenario Image

High brightness Red/yellow/green Customized Three Digits 7 Segment LED Display for refrigerator control 4


Order & Logistics

Minimum Order: 1000 pieces

Trade Term: EXW

Payment Terms: T/T, WU

Origin: Guangdong, China (Mainland)

Transport Options: Ocean, Air, Land

Production Capacity: 100,000 pcs/week

Packing: EPE + Carton (secure protection for transit)

Delivery Time: 5-7 days



Why Choose This Display?

LIGHT-BO’s triple-digit 7-segment display combines large, readable digits with versatile multi-color options, making it perfect for home appliances and climate control systems. Its durable design, energy efficiency, and RoHS compliance ensure long-term reliability, while easy integration simplifies manufacturing. Backed by high production capacity and fast delivery, it’s engineered to enhance visibility and performance in your products.
